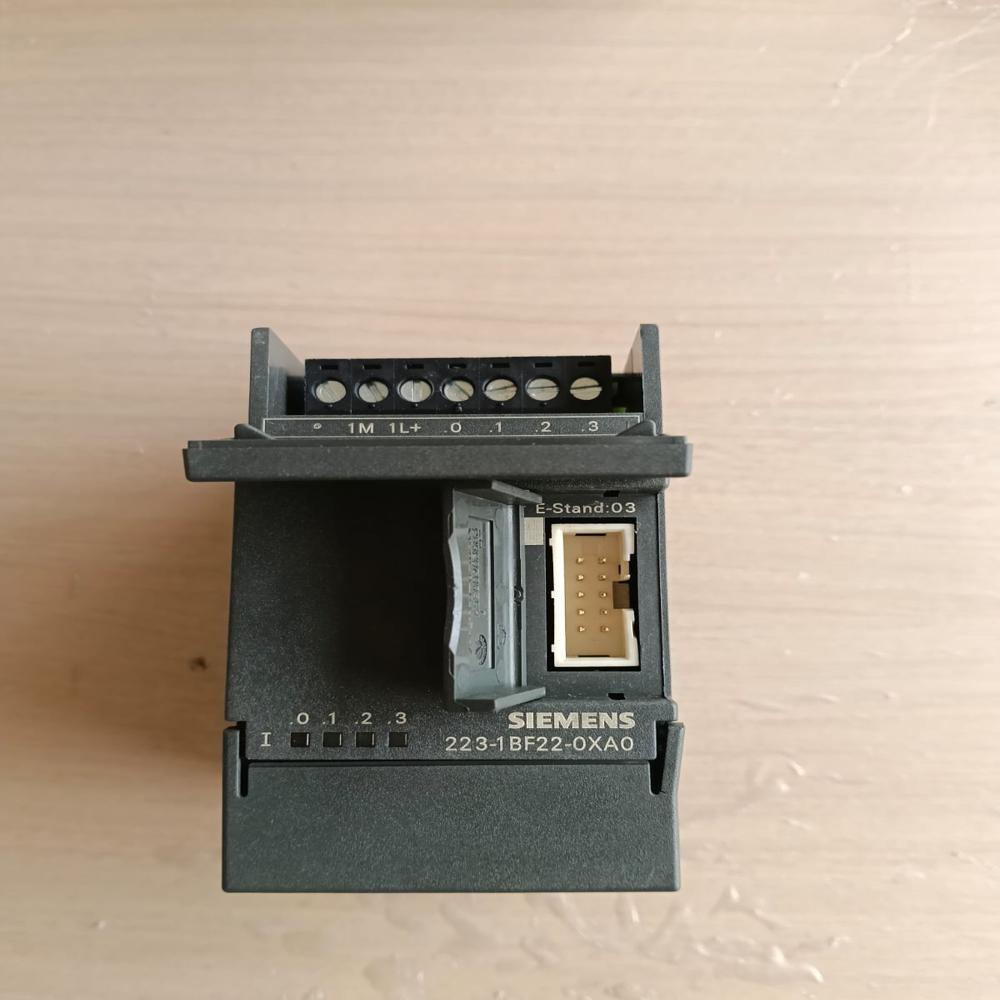

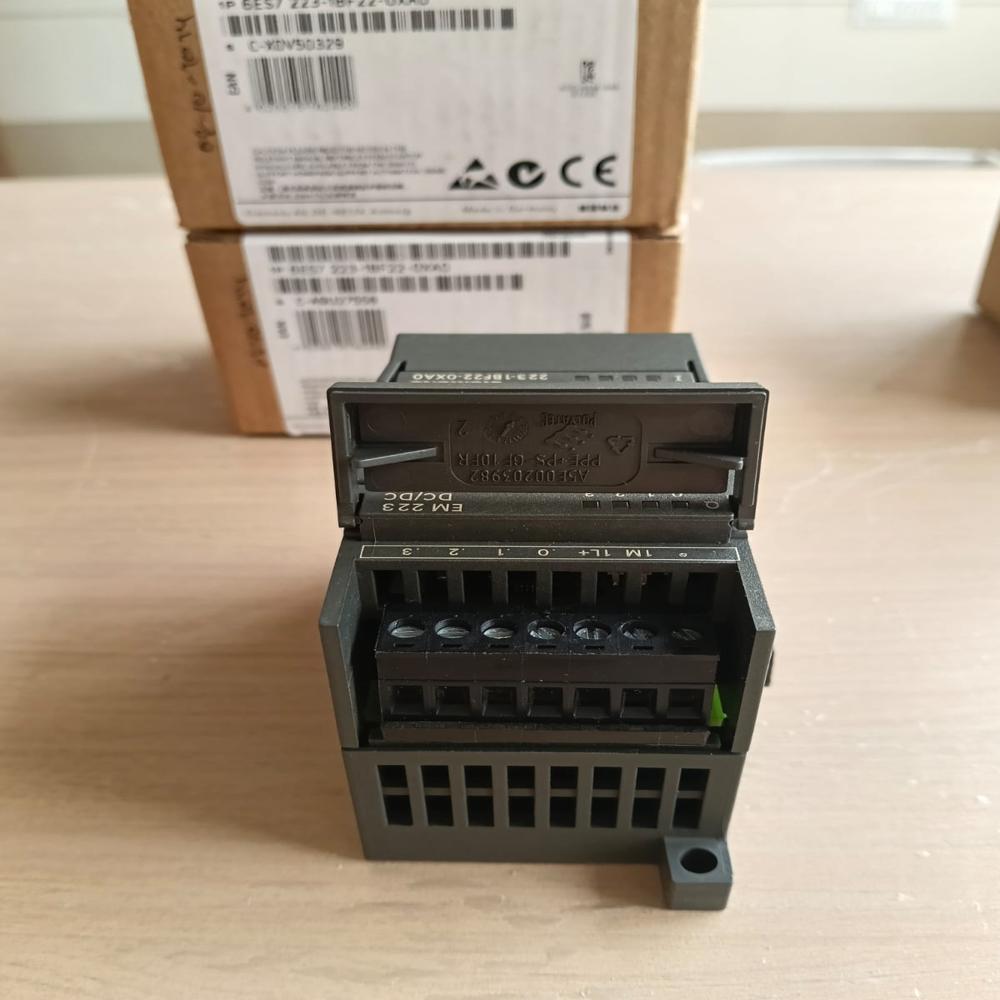

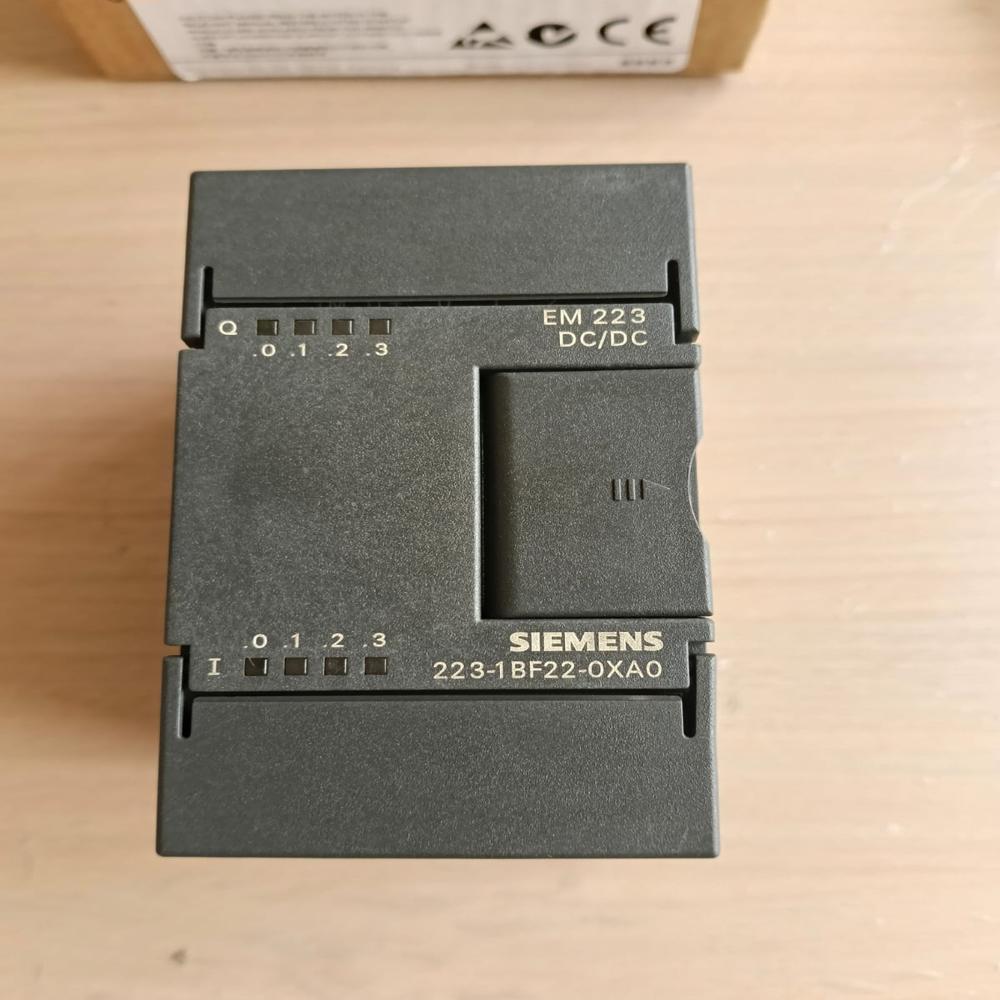

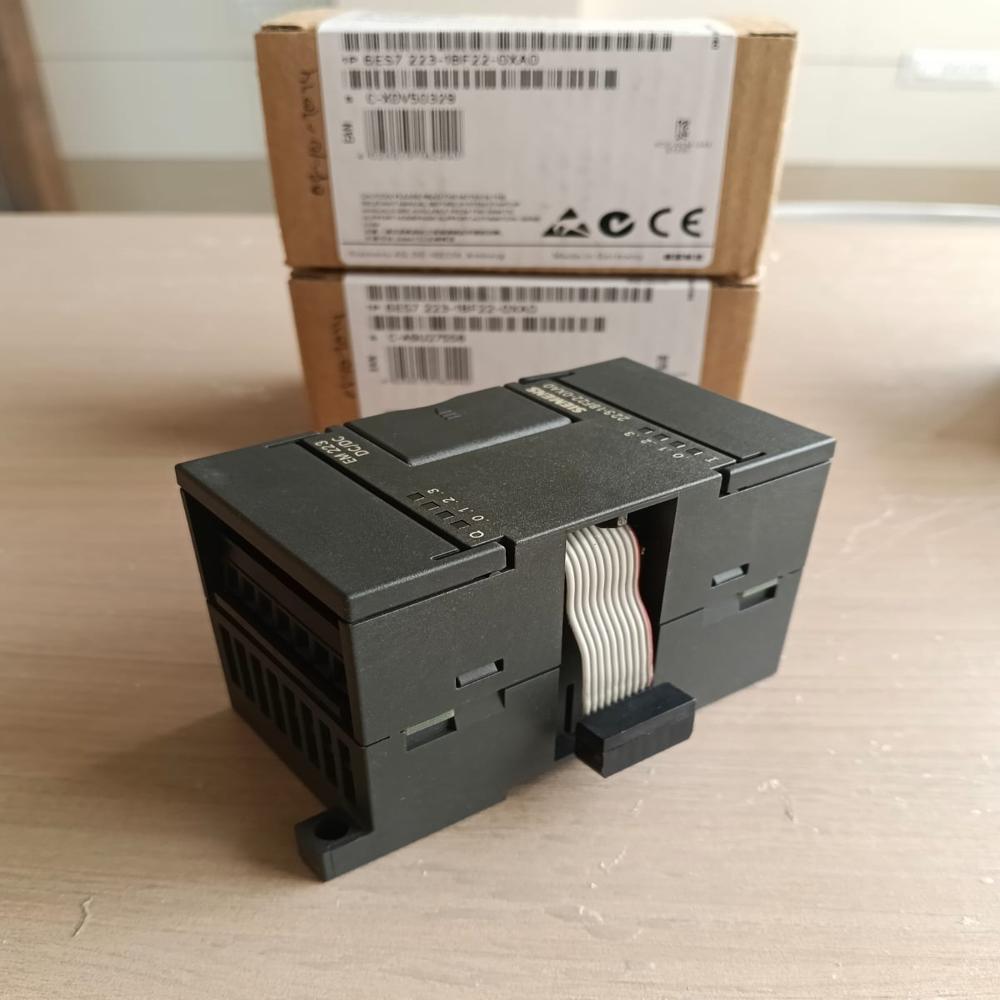

DIGITAL INPUT/OUTPUT 6ES7223-1BF22-0XA0

Name: DIGITAL INPUT/OUTPUT 6ES7223-1BF22-0XA0
Brand: SMTS Panels And Automation
Price: 26000.0 INR
Availability: InStock

26000.0 INR/Piece

Get a Price/Quote

Product Details:

Mounting Type DIN Rail
Shape Rectangular
Operating Temperature -20C to +60C
Surface Finish Matte
Connector Type Pin/Terminal Screw
Feature Expansion module for Siemens S7-200 series
Product Type Digital Input/Output Module
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DIGITAL INPUT/OUTPUT 6ES7223-1BF22-0XA0 Price And Quantity

Minimum Order Quantity 1 Piece
Price 26000.0 INR/Piece

DIGITAL INPUT/OUTPUT 6ES7223-1BF22-0XA0 Product Specifications

Size Compact
Application PLC Expansion Module for Industrial Automation
Product Type Digital Input/Output Module
Feature Expansion module for Siemens S7-200 series
Input Voltage 24V DC (15-30V for DI)
Connection Type Terminal Block
Mounting Type DIN Rail
Surface Finish Matte
Shape Rectangular
Operating Temperature -20C to +60C
Rated Voltage 24V DC
Connector Type Pin/Terminal Screw
Color Dark Gray/Black
Output Type 4 Digital Outputs (DO), 24VDC, 21-28V, 0.75A

Patent Patent Pending
Product Family Siemens S7-200
E-Stand 03
Input Type 4 Digital Inputs (DI), 24VDC, 15-30V
Environmental Protection Ex nA IIC T4
Type of Module Expansion Module (EM 223)

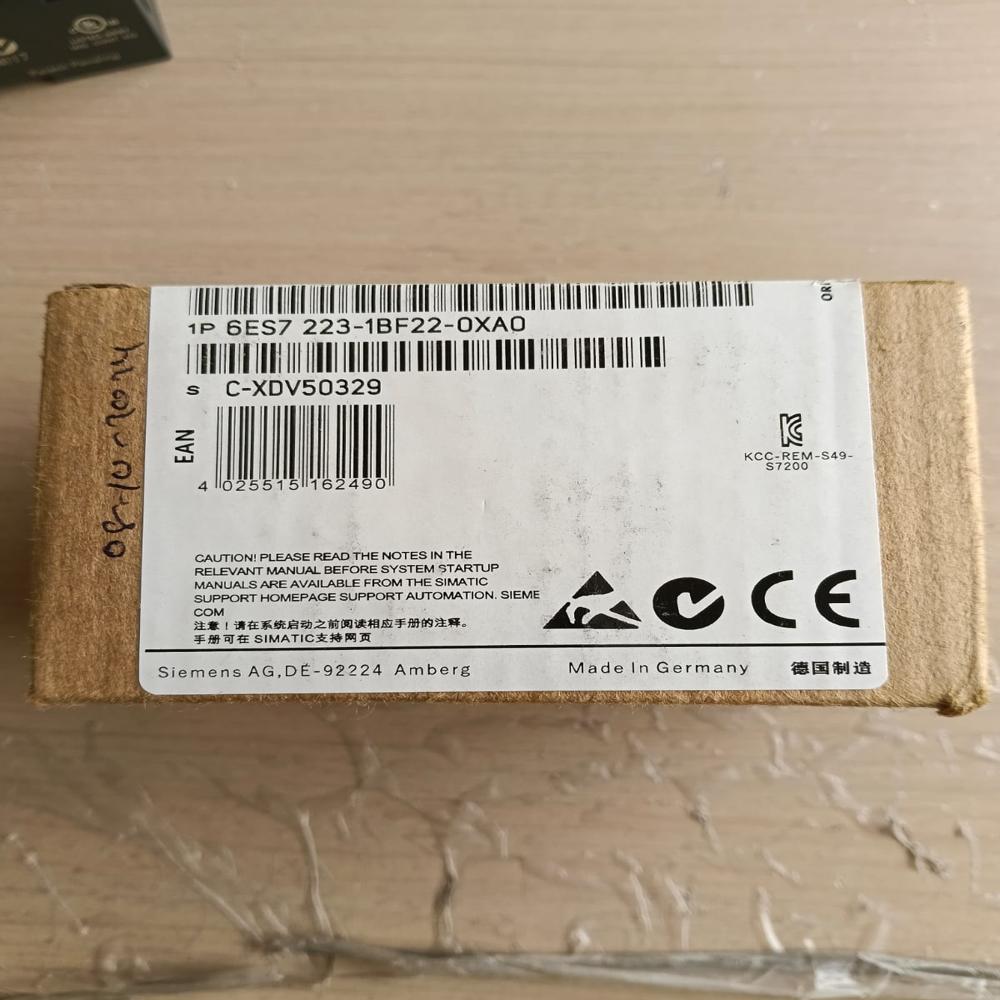

Product Code S C-XDV50329
Certification Marks CE, UL Listed, Ex (ATEX II 3 G Ex nA IIC T4 X)
Model Number 6ES7223-1BF22-0XA0

Product Description

The 6ES7223-1BF22-0XA0 (EM 223) is a digital expansion module designed for the Siemens SIMATIC S7-200 PLC family. It provides additional 24V DC inputs and transistor outputs to expand the I/O capacity of a main CPU unit

Flexible Expansion for S7-200 Systems

The 6ES7223-1BF22-0XA0 Expansion Module is engineered specifically for Siemens S7-200 PLCs, allowing users to enhance their control systems with additional digital inputs and outputs without needing a complete system redesign. Its plug-and-play connection design and robust certifications ensure reliable operation in diverse industrial environments.

Rugged and Safe Design for Industrial Environments

Boasting a compact rectangular form and designed with a matte, dark gray/black finish, this module is built to withstand challenging industrial conditions. With CE, UL, and ATEX certifications, it ensures safety and compliance in hazardous areas (Ex nA IIC T4), supporting operational continuity and user safety.

FAQ's of DIGITAL INPUT/OUTPUT 6ES7223-1BF22-0XA0:

Q: How do I install the 6ES7223-1BF22-0XA0 expansion module into my S7-200 system?

A: The module is mounted onto a DIN rail beside your S7-200 CPU unit. Use the terminal blocks and pin/terminal screw connectors to attach input and output field wiring, ensuring all connections are secure before powering up the system.

Q: What applications benefit from using this digital I/O module?

A: This expansion module is suited for industrial automation tasks requiring additional digital input and output channels, such as machinery control, process automation, and factory floor operations using S7-200 PLCs.

Q: When should I use an expansion module like the 6ES7223-1BF22-0XA0?

A: Use this expansion module when your existing S7-200 PLC lacks sufficient digital inputs or outputs, allowing for system scaling as your automation needs grow without replacing the CPU.

Q: Where can the 6ES7223-1BF22-0XA0 be installed?

A: Given its compact design and environmental protection rating (Ex nA IIC T4), the module can be installed in control cabinets within industrial facilities, including some hazardous areas, as guided by the ATEX certification.

Q: What process should I follow for wiring and setup?

A: Ensure you are working with the power off. Connect your field devices to the labeled terminal blocks, matching inputs and outputs to system requirements, and secure wires with terminal screws. After wiring, power up the PLC and configure it via your automation software.

Q: How does this module enhance the flexibility of an S7-200 system?

A: By providing four additional digital inputs and outputs, the module allows easy system expansion, supporting complex automation sequences and more extensive device integration without overhauling the base PLC.

Q: What are the main benefits of the 6ES7223-1BF22-0XA0 in industrial automation?

A: Key benefits include increased I/O capacity, reliable performance in harsh environments, global certification compliance, easy DIN rail mounting, and straightforward connectivity for faster deployment and system upgrades.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'PLC Modules' category

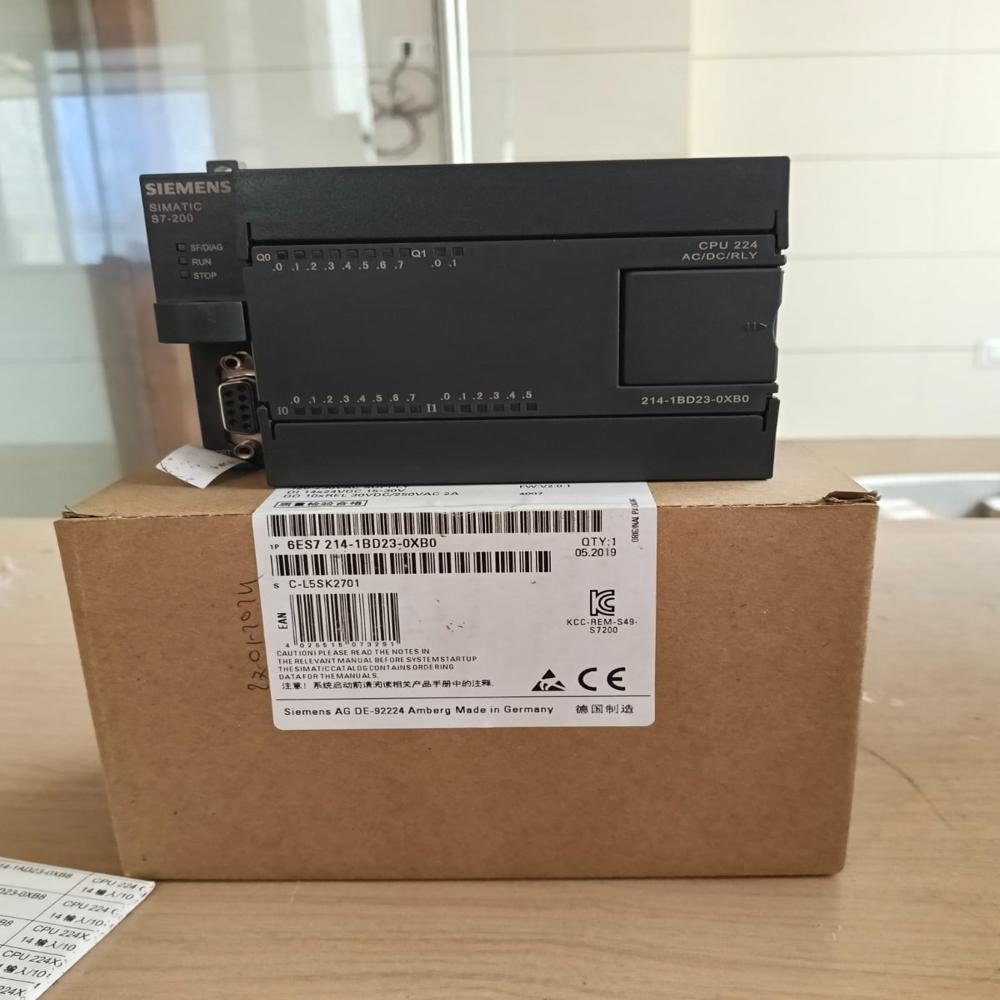

CPU MODULE 6ES7214-1BD23-0XB0 Price : 10000.00 INR/Piece Minimum Order Quantity : 1 Application : PLC Automation, Control Systems Shape : SQUARE Mounting Type : DIN RAIL Feature : HIGH Color : GREY Product Type : Other Power Rating : GOOD Material : PLAST Input Voltage : 14 Milliamperes (mA) Humidity % : 80 Warranty : 1 YEAR Rated Current : 0.5 A per channel (relay) Rated Voltage : 24 Volt (V) No Of Poles : POWER SUPPLY Frequency : 50 Hertz (HZ) Features : Integrated digital/analog I/O, Relay Outputs, Two communication ports, Programmable via STEP 7 Micro/WIN Surface Finish : YES Operating Temperature : 45 Celsius (oC) Dimension (L*W*H) : 160 mm x 120 mm x 62 mm (approx.) Protection Level : Other Power Factor : 250 Weight : 300 Milligram (mg) Phase : POWER DELIVERY CIRCUIT Usage & Applications : GENERAL Output Type : ELECTRIC Connector Type : ELECTRONIC IP Rating : IP40 Size : 1.5 Connection Type : 80 Efficiency : HIGH Frequency (MHz) : 50/60 Hz Cable Type : COPPER Conductor : COPPER Energy Consumption : 1 Energy Insulation Material : VDC

Send Inquiry

DIGITAL INTPUT MODULE 6ES7221-1BF22-0XA0 Price : 11000.0 INR/Piece Minimum Order Quantity : 1 Application : GENERAL Shape : SQUARE Mounting Type : DIN RAIL Feature : HIGH Color : GREY Product Type : ELECTRONICS Power Rating : GOOD Material : ELECTRONICS Input Voltage : 24 Volt (V) Humidity % : 80 Warranty : 1 YEAR Rated Current : 1 Milliampere (mA) Rated Voltage : 24 Volt (V) No Of Poles : 1 Frequency : 50 Hertz (HZ) Features : GOOD Surface Finish : YES Operating Temperature : 45 Celsius (oC) Dimension (L*W*H) : 3 X 2.3 X 4 Centimeter (cm) Protection Level : Other Power Factor : GOOD Weight : 200 Grams (g) Phase : 1 Usage & Applications : GENERAL Output Type : DIGITAL Connector Type : ELECTRONIC IP Rating : IP 20 Size : 3 X 2.3 X 4 Connection Type : PPL Efficiency : HIGH Display Type : NA Frequency (MHz) : 50 Hertz (HZ) Cable Type : COPPERE Conductor : COPPER Overheating Protection : YES Energy Consumption : 1 Energy Insulation Material : PVC

Send Inquiry

FX5-CCL-MS MITSUBISHI PLC Price : 35998.0 INR/Piece Minimum Order Quantity : 1 Application : INDUSTRIAL Shape : RECTANGULAR Mounting Type : DIN RAIL Feature : HIGH Color : LIGHT GRAAY Product Type : INTELLIGENT DEVICE Power Rating : 2.4W (0.10A AT 24V DC) Material : PLASTIC Input Voltage : 24V DC Volt (V) Humidity % : 5% TO 95% RH Warranty : 1 YEAR Rated Current : 100 MA 0.1 A Milliampere (mA) Rated Voltage : 24 Volt (V) No Of Poles : NA Frequency : HIGH Hertz (HZ) Features : HIGHSPEED Surface Finish : SMOOTH/MATTE PLASTIC Operating Temperature : O C TO 55 C (32 F TO 131 F) Celsius (oC) Dimension (L*W*H) : 90 MM X 50 MM X 83 MM Millimeter (mm) Protection Level : Other Power Factor : N/A (DC OPERATED) Weight : 300 Grams (g) Phase : NA (DC OPERATED) Usage & Applications : PLC Output Type : NA Connector Type : (5PINCCLINK BLOCK) IP Rating : IP20 Size : 90 X 50 X83 MM Connection Type : TERMINAL BLOCK/BUS EXTENSION CABLE Efficiency : HIGH Display Type : LED Frequency (MHz) : 24V DC Megahertz (MHZ) Cable Type : COPPER Conductor : COPPER Overheating Protection : YES Energy Consumption : 100 MA Energy Insulation Material : POLYCARBONATE HOUSING

Send Inquiry

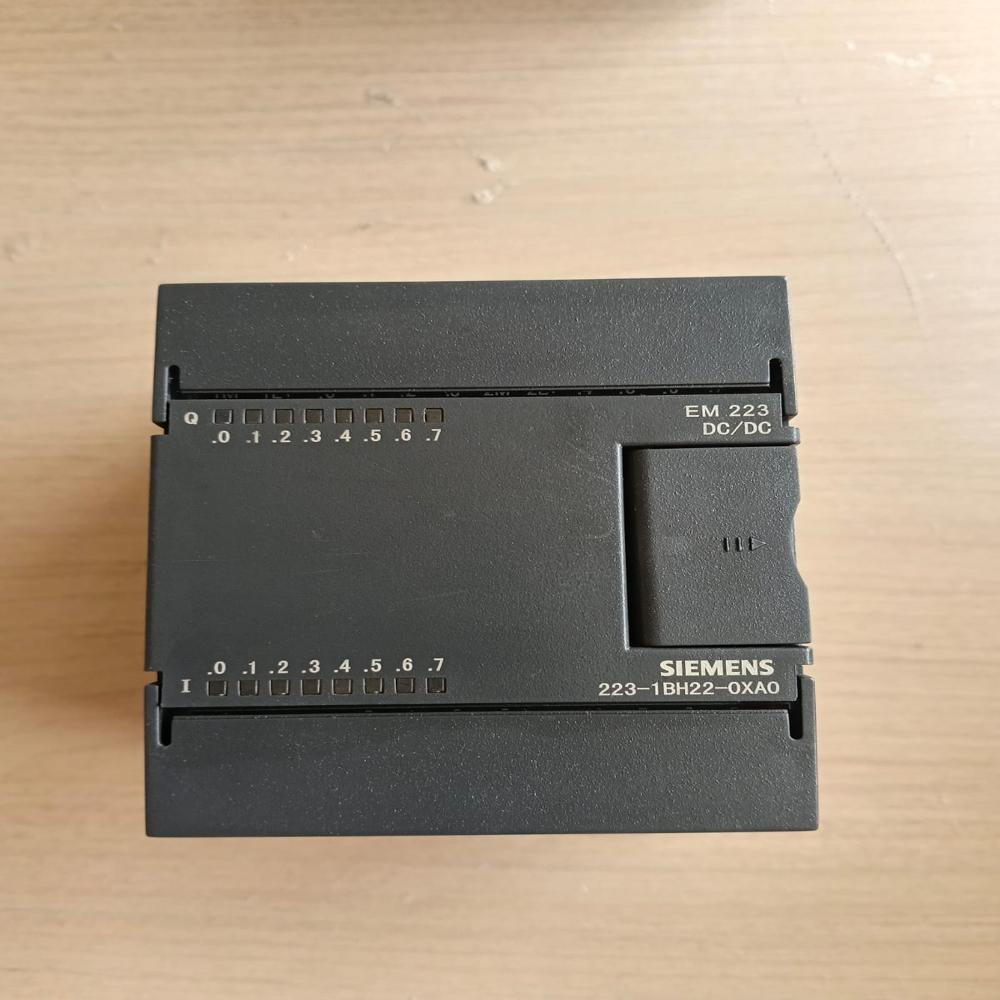

DIGITAL INPUT/OUTPUT 6ES7223-1BH22-0XA0 Price : 28500.0 INR/Piece Minimum Order Quantity : 1 Application : GENERAL Shape : SQUARE Mounting Type : DIN RAIL Feature : HIGH Color : GREY Product Type : ELECTROINIS Power Rating : GOOD Material : PLAST Input Voltage : 24 Volt (V) Humidity % : 90 Warranty : 1 YEAR Rated Current : 1 Milliampere (mA) Rated Voltage : 24 Volt (V) No Of Poles : 1 Frequency : 50 Hertz (HZ) Features : HIGH Surface Finish : YES Operating Temperature : 45 Celsius (oC) Dimension (L*W*H) : 71.2 X 80 X 62 Centimeter (cm) Protection Level : Other Power Factor : GOOD Weight : 200 Grams (g) Phase : 1 Usage & Applications : GENERAL Output Type : DIGITAL Connector Type : ELECTRONIC IP Rating : IP50 Size : 71.2 X 80 X 62 Connection Type : PPL Efficiency : HIGH Display Type : NA Frequency (MHz) : 50 Hertz (HZ) Cable Type : COPPER Conductor : COOPER Overheating Protection : YES Energy Consumption : 1 Energy
