Custom Electrical Control Panel

Name: Custom Electrical Control Panel
Brand: SMTS Panels And Automation
Price: 11000 INR
Availability: InStock

11000 INR/Unit

Get a Price/Quote

Product Details:

Protection Level IP54
Thickness 2 mm
Cover Material Steel
Panel Type Custom Designed
Operating Voltage 415V
Current Rating As Per Application
Rated Current As Per Application
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Custom Electrical Control Panel Price And Quantity

Minimum Order Quantity 1 Unit
Price 11000 INR/Unit

Custom Electrical Control Panel Product Specifications

Thickness 2 mm
Protection Level IP54
Standard IEC 61439
Frequency (MHz) 50 Hz
Rated Current As Per Application
Current Rating As Per Application
Operating Voltage 415V
Panel Type Custom Designed
Cover Material Steel
Application Industrial Automation
Rated Insulation Voltage 690V
Surface Finish Powder Coated
Rated Voltage 415V AC
IP Rating Ip54
Rated Operation Voltage 415V
Maximum Output Current As Per Application
Features High Durability, Customization, Easy Maintenance
Control System Relay/PLC based
Cooling System Natural Ventilation
Cabinet Material Mild Steel
Dimension (L*W*H) Customizable
Connectivity Type Wired
Components Push Button, Relays, PLC modules
Way Multi Way
Product Type Electrical Control Panel
Base Material Mild Steel
Surface Color Grey
Display Type None (Internal Mounting)
Protection Class Class I
Material Mild Steel

Cable gland Provided
Color code wiring Standardized colors
Phase Three Phase
Wire entry Top/Bottom Entry
Mounting type Wall/Floor Mount
Output type Relay Outputs
Enclosure rating Industrial Grade
Busbar type Copper Busbar
Marking Engraved Labels
PLC make Siemens Compatible
Input type Digital Inputs
Terminal type Screw Terminal
Surge protection Integrated

Custom Electrical Control Panel Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Unit Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

Discover the ineffable potential of our Custom Electrical Control Panel-an acclaimed solution trending among preeminent manufacturers and service providers in India. Engineered with noble precision, this panel features a Copper Busbar for reliable conductivity, is compatible with Siemens PLCs, and offers digital inputs with relay outputs. Enclosed in powder-coated, industrial-grade mild steel, it ensures IP54 protection and enduring performance. Benefit from standardized wiring colors, integrated surge protection, engraved labels, and easy maintenance. Customization of size and current ratings ensures tailored excellence for every automation need. Built to IEC 61439 standards.

Application Versatility of Custom Electrical Control Panels

Custom Electrical Control Panels are utilized in industrial automation, manufacturing plants, and process industries. Ideal for controlling machines, motors, and process equipment, these panels support digital inputs and relay outputs. The panels are perfect for locations demanding high reliability and safety, including factories, water treatment plants, and assembly lines. Their robust design, advanced surge protection, and multi-way customizability offer significant operational advantages, ensuring seamless integration in both new and retrofit automation projects across various media and demanding environments.

Supply Ability, Packaging, and Certifications

With scalable supply ability to meet diverse industrial requirements, our panels are carefully packaged using durable materials for secure transportation. We ensure timely delivery and comprehensive client support, accommodating custom quotations as per project needs. Each panel is meticulously certified under IEC 61439 standards, attesting to its quality and safety. Our focus on reliability throughout the supply and delivery process makes us a trusted partner, enhancing your operational efficiency with prompt, certified, and professional service every time.

FAQ's of Custom Electrical Control Panel:

Q: How does the custom electrical control panel ensure operational reliability in industrial settings?

A: The panel's IP54-rated powder-coated enclosure, copper busbar, and integrated surge protection deliver lasting durability and protection against dust and splashes, supporting consistent and safe operation even in demanding environments.

Q: What customization options are available for this control panel?

A: You can customize dimensions, current ratings, mounting type (wall or floor), cable entry (top or bottom), and terminal arrangements. This ensures the panel perfectly fits your application's technical and space requirements.

Q: What is involved in the process of ordering and delivery for these panels?

A: Contact us for a tailored quotation; after design confirmation, panels are manufactured, tested, and securely packaged. We coordinate transportation and ensure timely delivery, with documentation supporting installation and operation.

Q: Where are these custom panels typically deployed?

A: They are widely used in industrial automation, factory control systems, water treatment facilities, and process industries where reliable control and protection of equipment are paramount.

Q: What are the main benefits of using a Siemens-compatible, PLC-based control panel?

A: Siemens compatibility allows seamless integration with proven automation systems. Users benefit from reliable PLC performance, easy programming, scalability, and robust support for digital and relay-based outputs in automation tasks.

Q: How does the integrated surge protection enhance panel safety?

A: Dedicated surge protection devices safeguard sensitive electronics against voltage spikes and transients, minimizing downtime and preventing costly damage to the panel and connected equipment.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Industrial Electric Control Panel' category

Power Panels Price : 52000 INR/Unit Minimum Order Quantity : 1 Rated Insulation Voltage : 660 V Surface Finish : Powder Coated Rated Voltage : 415 V AC Protection Level : IP66 Thickness : 2 mm Standard : IEC 61439 Frequency (MHz) : 50 Hz Operating Voltage : 415 V Panel Type : Synchronized Panel Rated Current : 630 A Current Rating : 630 A Cover Material : Other, Powder Coated Steel Application : Electrical Distribution Components : L&T Switchgear Connectivity Type : Wired Product Type : Other, Power Panel Base Material : Other, CRCA Sheet Way : 12 Way Surface Color : Other, RAL 7035 Grey Protection Class : Class I Material : Other, CRCA Steel Display Type : Other, Analog/Digital Metering IP Rating : Other, IP66 Maximum Output Current : 630 A Rated Operation Voltage : 415 V Features : Modular Design, Easy Maintenance Control System : Automatic & Manual Cooling System : Natural Air Cooled Cabinet Material : CRCA Steel Dimension (L*W*H) : 2500x600x2000 mm

Send Inquiry

100A Electric Control Panel Price : 121000 INR/Unit Minimum Order Quantity : 1 Rated Insulation Voltage : 690 V Surface Finish : Other, Smooth Rated Voltage : 415 V Protection Level : IP54 Thickness : 2 mm Standard : IEC 61439 Frequency (MHz) : 50 Hz Operating Voltage : 415 V Panel Type : Wall Mounted Rated Current : 100A Current Rating : 100A Cover Material : Other, CRCA Sheet Application : Motor Control Components : Terminal Blocks, Busbar, Push Button Connectivity Type : Hardwired Product Type : Other, Electric Control Panel Base Material : Other, CRCA Sheet Way : Single way Surface Color : Other, Grey Protection Class : Class I Material : Other, Powder Coated Metal Display Type : Analog IP Rating : Ip54 Maximum Output Current : 100A Rated Operation Voltage : 415 V Features : Corrosion Resistant, Easy Installation Control System : Manual & Automatic Cooling System : Natural Air Ventilation Cabinet Material : Steel Dimension (L*W*H) : 600x400x200 mm

Send Inquiry

230 V AC PLC Control Panel Price : 221000 INR/Unit Minimum Order Quantity : 1 Rated Insulation Voltage : 500 V Surface Finish : Powder Coated Rated Voltage : 230 V AC Protection Level : IP54 Thickness : 2 mm Standard : IEC Standard Frequency (MHz) : 5060 Hz Operating Voltage : 230 V AC Panel Type : PLC Panel Rated Current : 10A Current Rating : 10A Cover Material : Stainless Steel Application : Industrial Automation Components : PLC, Relays, Terminal Blocks, Power Supply Connectivity Type : Modbus Communication Product Type : Other, PLC Control Panel Base Material : Stainless Steel Way : Single / Multiple Way Surface Color : Other, Grey Protection Class : Class I Material : Stainless Steel Display Type : Other, HMI Touch Screen IP Rating : Ip54 Maximum Output Current : 10A Rated Operation Voltage : 230 V AC Features : With HMI, Wall Mounted Control System : Allen Bradley PLC Cooling System : Natural Air Vents Cabinet Material : Stainless Steel Dimension (L*W*H) : 600 x 800 x 200 mm

Send Inquiry

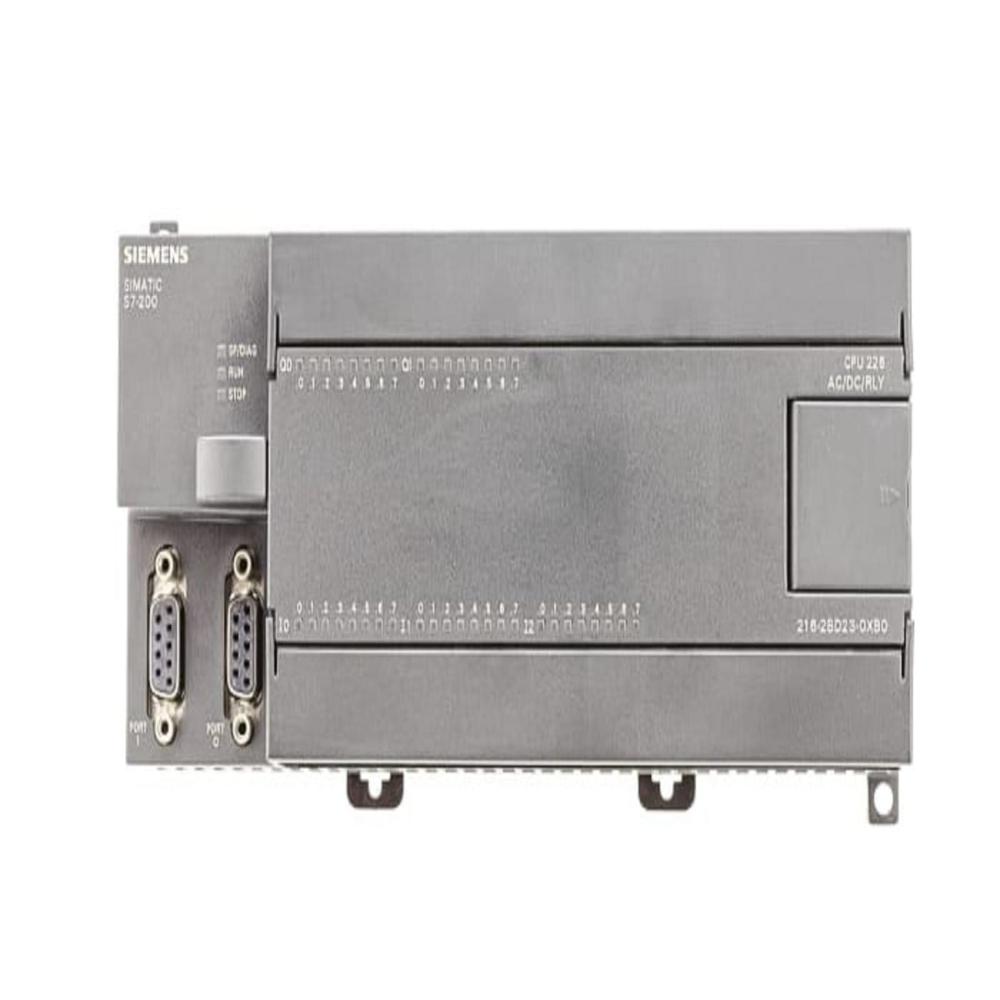

cpu module 6es7216-2 bd23-0xb0 Price : 9000500.0 INR/Piece Minimum Order Quantity : 1 Rated Insulation Voltage : 500V AC Surface Finish : Other, Matte Rated Voltage : 24V DC / 230V AC Protection Level : Other, IP20 Thickness : Standard Module Size Standard : Siemens SIMATIC S7200 Series Frequency (MHz) : 50/60 Hz Operating Voltage : 24V DC Panel Type : Mountable (DIN rail or Panel) Rated Current : 0.5 A per channel (relay) Current Rating : Relay Output: 0.5A max per channel Cover Material : Other, Same as body (Industrial Grade Plastic) Application : PLC Automation, Control Systems Components : Microprocessor, Communication Ports, Relays, Digital/Analog I/O Connectivity Type : Serial RS485, RS232 Ports Product Type : Other, CPU Module (CPU 226) Base Material : Other, Thermoplastic Polymer Way : Multiple Digital/Analog I/O Surface Color : Other, Grey Protection Class : Class II Material : Other, Industrial Grade Plastic, Electronic Components Display Type : Other, LED Indicators IP Rating : Other, IP20 Maximum Output Current : 0.5 A per relay output Rated Operation Voltage : 24V DC (inputs), 230V AC (relay outputs) Features : Integrated digital/analog I/O, Relay Outputs, Two communication ports, Programmable via STEP 7 Micro/WIN Control System : Programmable Logic Controller (PLC) Cooling System : Natural Air Cooling Cabinet Material : Plastic, Builtin module Dimension (L*W*H) : 160 mm x 120 mm x 62 mm (approx.)
