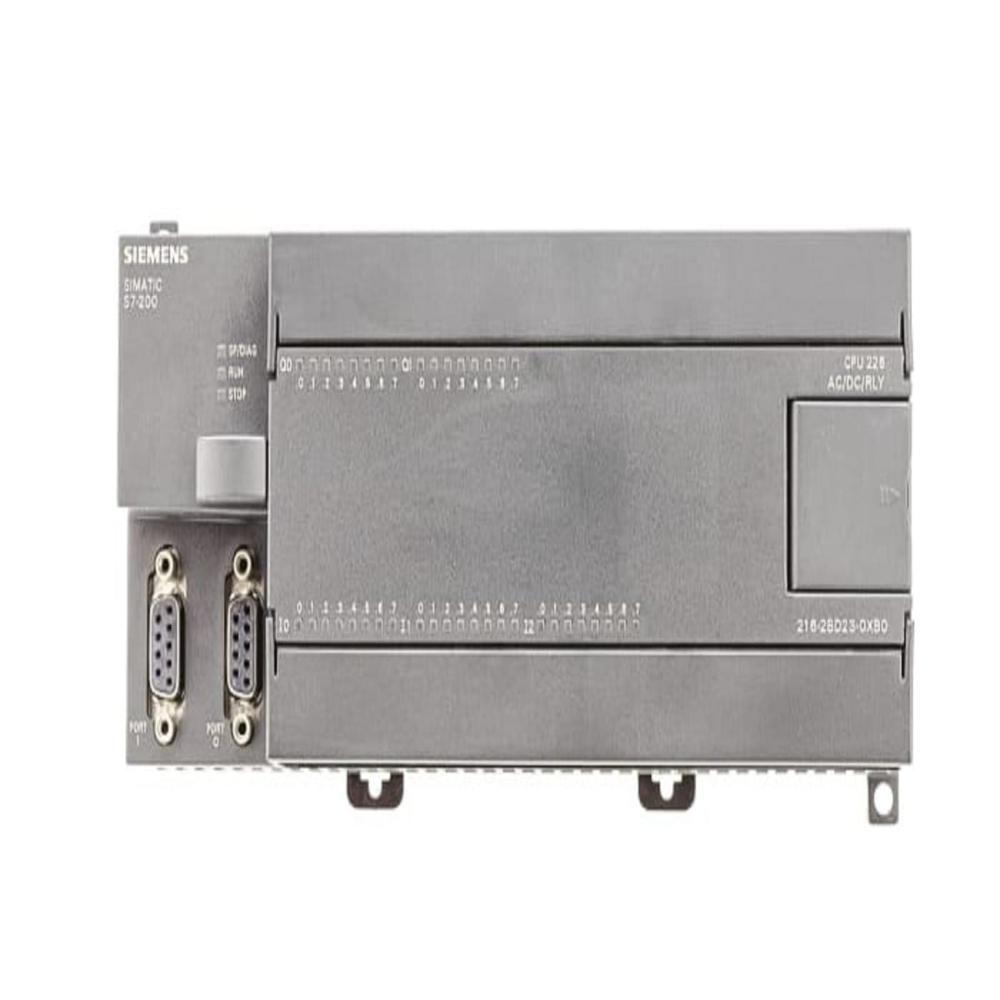

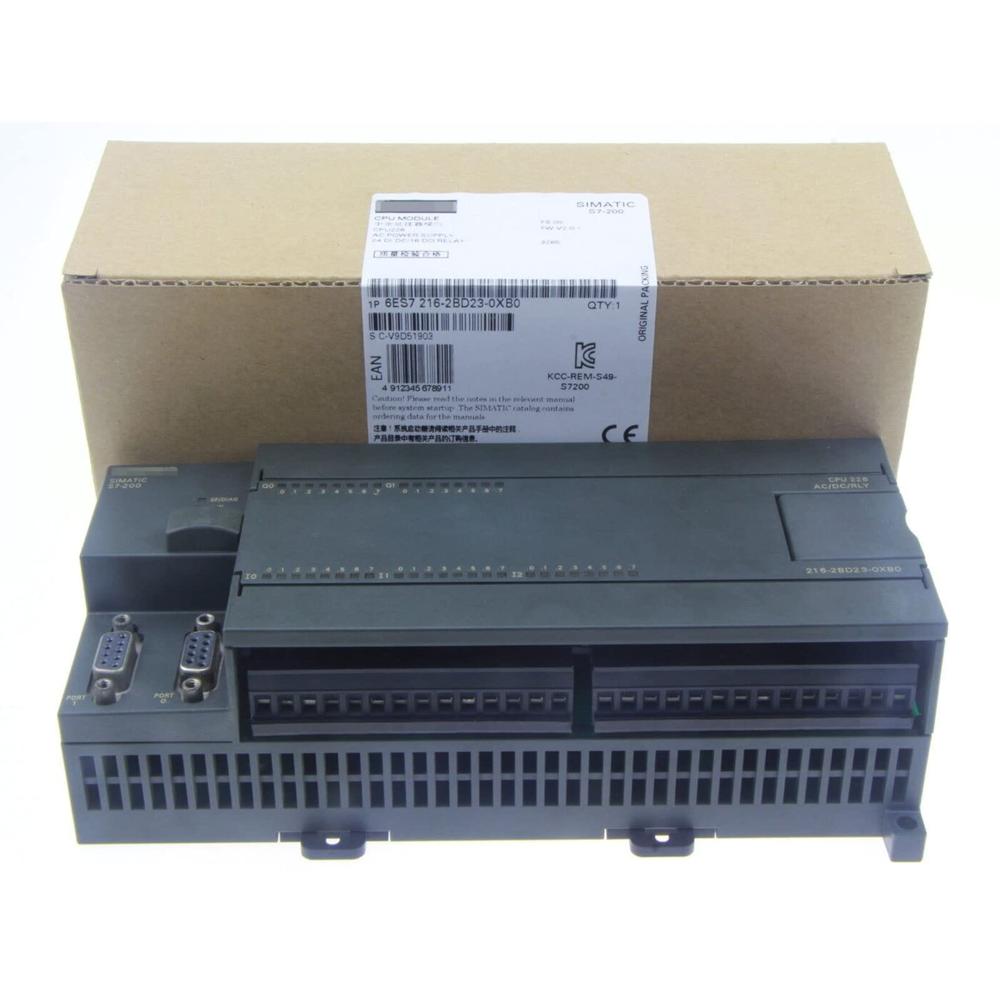

cpu module 6es7216-2 bd23-0xb0

Name: cpu module 6es7216-2 bd23-0xb0
Brand: SMTS Panels And Automation
Price: 225000.00 INR
Availability: InStock

225000.00 INR/Piece

Get a Price/Quote

Product Details:

Cover Material Same as body (Industrial Grade Plastic)
Panel Type Mountable (DIN rail or Panel)
Rated Insulation Voltage 500V AC
Connectivity Type Serial RS-485, RS-232 Ports
Rated Current 0.5 A per channel (relay)
Rated Operation Voltage 24V DC (inputs), 230V AC (relay outputs)
Current Rating Relay Output: 0.5A max per channel
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

cpu module 6es7216-2 bd23-0xb0 Price And Quantity

Price 225000.00 INR/Piece
Minimum Order Quantity 1 Piece

cpu module 6es7216-2 bd23-0xb0 Product Specifications

Protection Class Class II
Thickness Standard Module Size
Surface Finish Matte
Cooling System Natural Air Cooling
Rated Operation Voltage 24V DC (inputs), 230V AC (relay outputs)
Current Rating Relay Output: 0.5A max per channel
Rated Insulation Voltage 500V AC
Connectivity Type Serial RS-485, RS-232 Ports
Frequency (MHz) 50/60 Hz
Rated Current 0.5 A per channel (relay)
Display Type LED Indicators
Cover Material Same as body (Industrial Grade Plastic)
Panel Type Mountable (DIN rail or Panel)
Dimension (L*W*H) 160 mm x 120 mm x 62 mm (approx.)
Application PLC Automation, Control Systems
Protection Level IP20
Maximum Output Current 0.5 A per relay output
Way Multiple Digital/Analog I/O
Surface Color Grey
Product Type CPU Module (CPU 226)
Rated Voltage 24V DC / 230V AC
Base Material Other
Standard Siemens SIMATIC S7-200 Series
Control System Programmable Logic Controller (PLC)
Components Microprocessor, Communication Ports, Relays, Digital/Analog I/O
Features Integrated digital/analog I/O, Relay Outputs, Two communication ports, Programmable via STEP 7 Micro/WIN
Material Other
Operating Voltage 24V DC
Cabinet Material Plastic, Built-in module

Vibration Resistance Tested as per Siemens industrial standard
Storage Temperature Range -40C to 70C
Memory Size 24 KB program memory
Communication Protocols PPI, Freeport, Modbus
Response Time Typical <1ms for basic instructions
Operating Temperature Range 0C to 55C
Number of Digital Inputs 24
Number of Digital Outputs 16 Relay Outputs
Weight Approx. 0.6 kg
Programming Software STEP 7 Micro/WIN
Mounting Type DIN Rail or Panel Mounting
Model 6ES7216-2BD23-0XB0 (CPU 226 AC/DC/Relay)

cpu module 6es7216-2 bd23-0xb0 Trade Information

Delivery Time 1 Seconds

Product Description

Because the S7-200 family is a legacy line, newer automation projects typically migrate to the Siemens SIMATIC S7-1200 controller series. Replacement parts for maintenance are generally sourced through automation surplus or secondary market suppliers.

Versatile Digital I/O and Relay Outputs

The CPU 226 AC/DC/Relay module is equipped with 24 digital inputs and 16 relay outputs, offering ample connectivity and control capabilities for industrial automation systems. Its relay outputs are rated at 0.5A per channel, ensuring reliable switching for a wide range of actuators and devices in control applications.

Rugged Design for Industrial Environments

Manufactured with industrial-grade plastic and compliant with Siemens standards, the CPU module ensures durability against harsh operating conditions. It offers IP20 protection and vibration resistance, making it suitable for continuous operation in demanding industrial settings.

Flexible Mounting and Communication Options

Installation is streamlined with options for both DIN rail and panel mounting. Integrated communication ports (RS-485, RS-232) and support for protocols like PPI, Freeport, and Modbus allow seamless integration into new or existing PLC automation infrastructure.

FAQ's of cpu module 6es7216-2 bd23-0xb0:

Q: How is the 6ES7216-2BD23-0XB0 CPU module installed in control panels?

A: The module supports both DIN rail and panel mounting, providing flexibility for different cabinet layouts. Simply secure the unit using standard mounting hardware suited to your panel requirements.

Q: What programming software is compatible with this CPU module?

A: Programming is performed using Siemens STEP 7 Micro/WIN software, allowing intuitive configuration, ladder logic creation, and diagnostics for automation projects.

Q: When should I use relay outputs instead of transistor outputs for my application?

A: Relay outputs on this module allow safe switching of both AC and DC loads up to 230V AC/0.5A per channel, making them ideal for interfacing with external devices such as motor starters, lamps, or solenoids where electrical isolation is essential.

Q: Where can this CPU module be used?

A: It is well-suited for various industrial automation and process control systems in manufacturing, environmental monitoring, and building automation, operating reliably between 0C and 55C in protected environments.

Q: What are the key benefits of using the S7-200 CPU 226 module in automation projects?

A: Its fast response time (<1ms for basic instructions), ample program memory, and robust build ensure efficient, reliable, and scalable automation. Built-in communication support simplifies integration into modern industrial networks.

Q: How does the CPU handle vibration and environmental challenges?

A: Compliant with Siemens industrial vibration standards and featuring an IP20 enclosure, the CPU is designed to withstand typical plant floor conditions, ensuring stable long-term operation.
