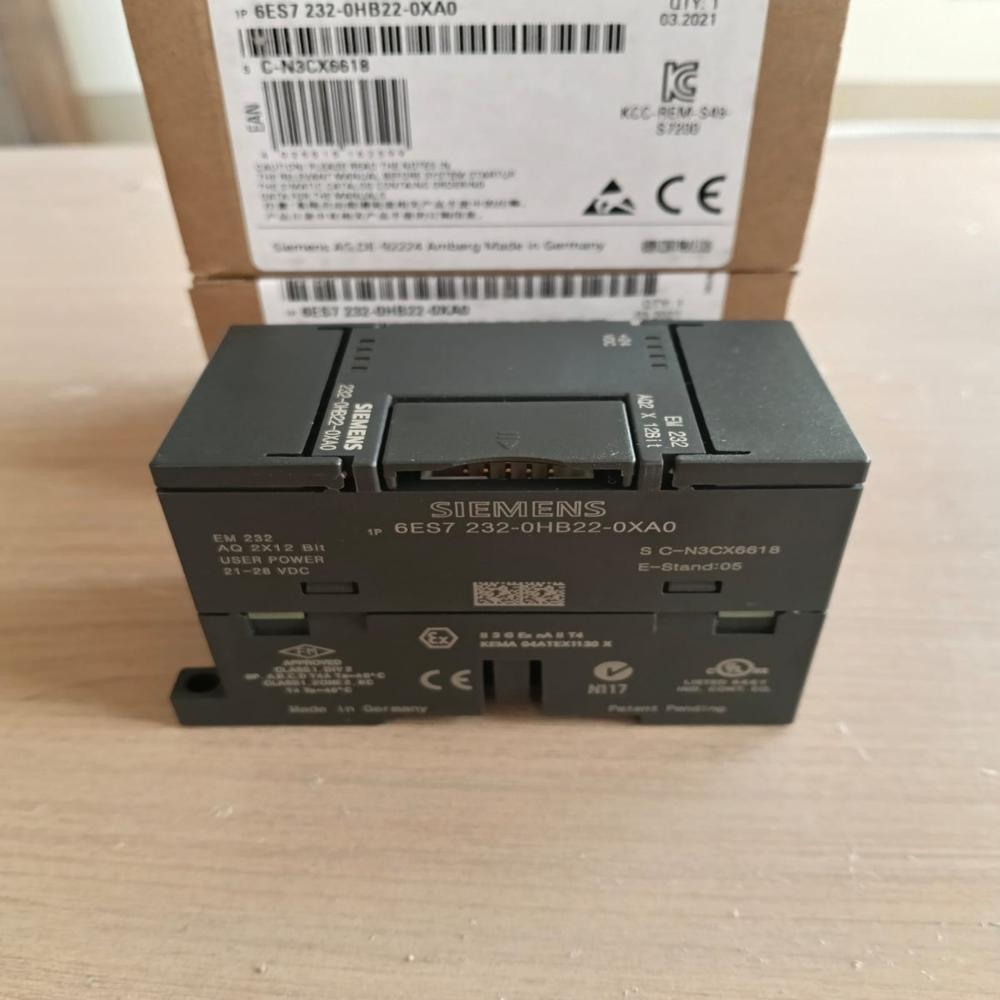

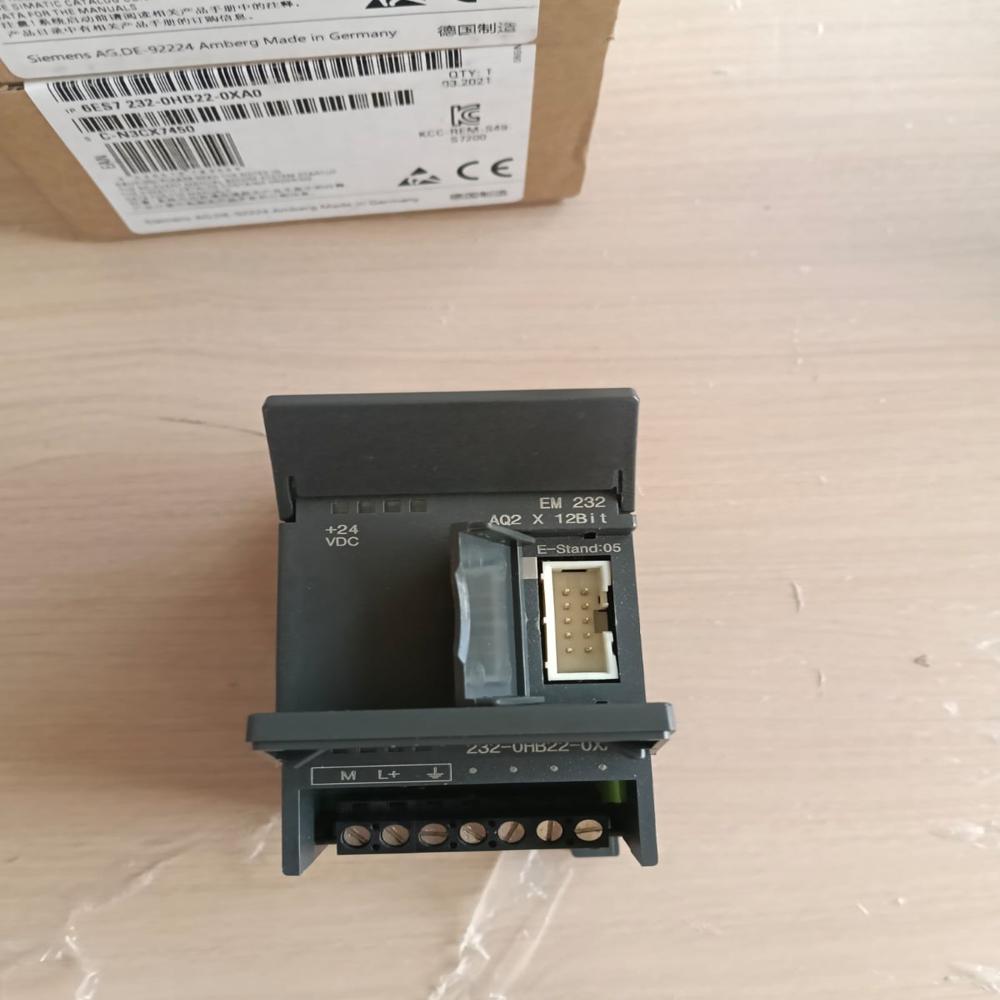

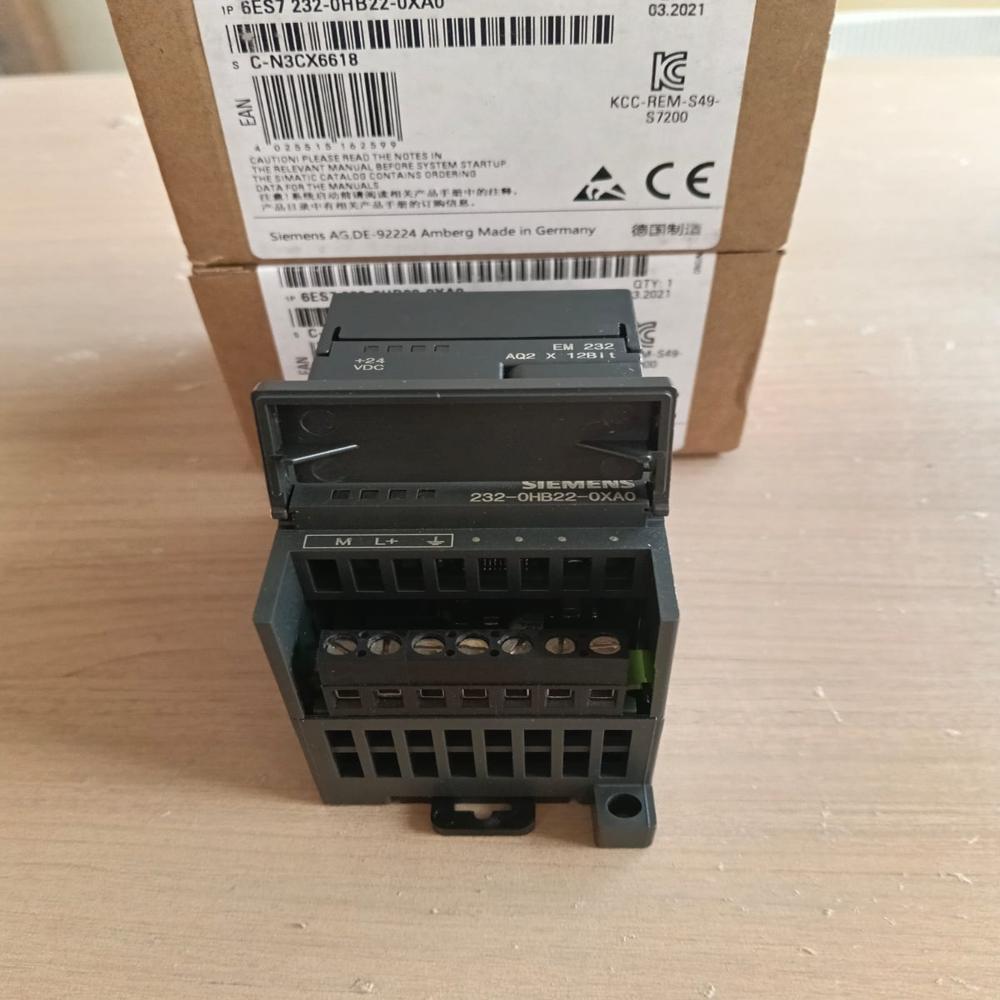

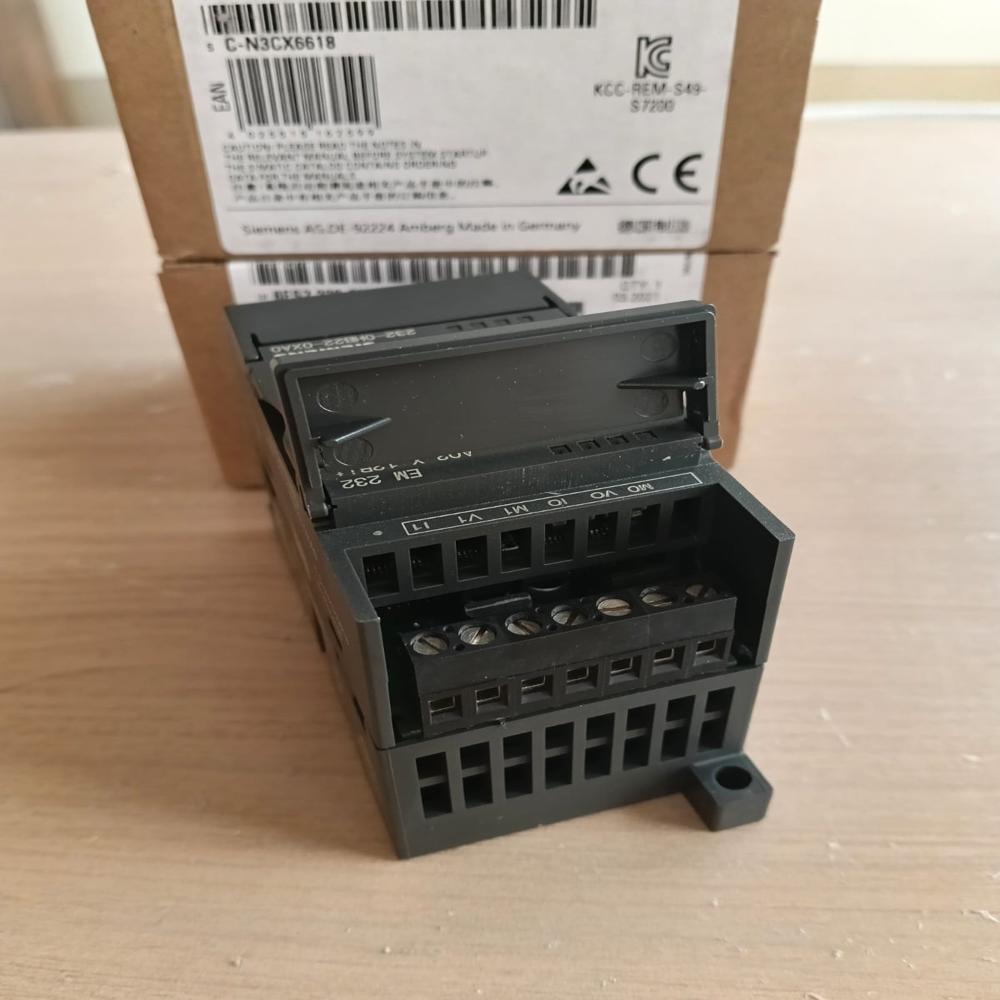

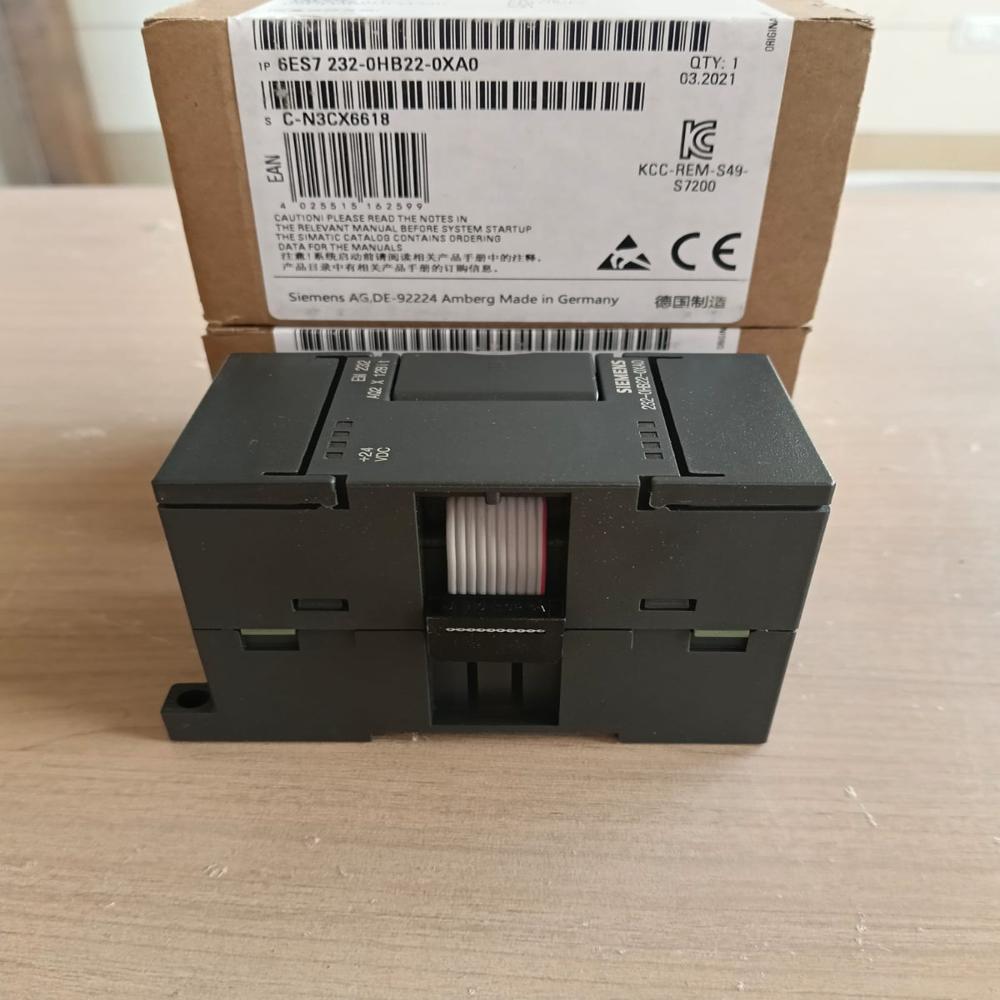

ANALOG OUTPUT MODULE 6ES7232-0HB22-0XA0

Name: ANALOG OUTPUT MODULE 6ES7232-0HB22-0XA0
Brand: SMTS Panels And Automation
Price: 19500.0 INR
Availability: InStock

19500.0 INR/Unit

Get a Price/Quote

Product Details:

Phase Single Phase
Output Type Single
Operating Temperature 0 C T0 55 C Celsius (oC)
Power Supply 24 V DC MAX. 70MA
Connector Type 0.5 MM TO 1.5 MM
Rated Power 2 W
Rated Current 4 T0 20 MA Milliampere (mA)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

ANALOG OUTPUT MODULE 6ES7232-0HB22-0XA0 Price And Quantity

Minimum Order Quantity 1 Unit
Price 19500.0 INR/Unit

ANALOG OUTPUT MODULE 6ES7232-0HB22-0XA0 Product Specifications

Power Rating GOOD
Conductor 0.5 MM TO 1.5 MM
Operating Temperature 0 C T0 55 C Celsius (oC)
Efficiency 12-BIT
Power Supply 24 V DC MAX. 70MA
Connector Type 0.5 MM TO 1.5 MM
Output Power 4-20MA Milliampere (mA)
Storage Temperature -40 C TO +70 C Celsius (oC)
Material PLASTIC
Phase Single Phase
Voltage Protection 24 V DC
Output Type Single
Product Type ELECTRONICS
Rated Voltage 24 Volt (V)
Features GOOD
Weight 149 Grams (g)
Frequency 50 Hertz (HZ)
Output Current 50 Milliampere (mA)
Output Frequency 45 Hertz (HZ)
Input Voltage 24 V DC Volt (V)
Current Range 0 TO 32000 FOR 0 T0 20 MA Milliamperes (mA)
Cable Type 100 METERS
Line Regulation 20.4V DC T0 28.8V DC; MAX
Power Factor 0.6 TO 0.95
Display Type 24 V DC
Rated Power 2 W
Rated Current 4 T0 20 MA Milliampere (mA)
Noise Level 61000-6-2 db
Cooling Method 55 C
Usage & Applications ME 232
Working Temperature -40 C TO +70 C Celsius (oC)
Warranty 1 YEAR
Application GENERAL

ANALOG OUTPUT MODULE 6ES7232-0HB22-0XA0 Trade Information

Delivery Time 1 Seconds

Product Description

The EM 232 module converts digital values calculated by the S7-200 CPU into proportional continuous analog signals (voltage or current). It is commonly used to control speed references for Variable Frequency Drives (VFDs), modulate proportional control valves, adjust heating power controllers, and output signals to external panel meters
